Format of Documents File and Meta File

Format of Documents File

Documents file is a part of fraction data. It has *.docs extention and contains documents stored in fraction.

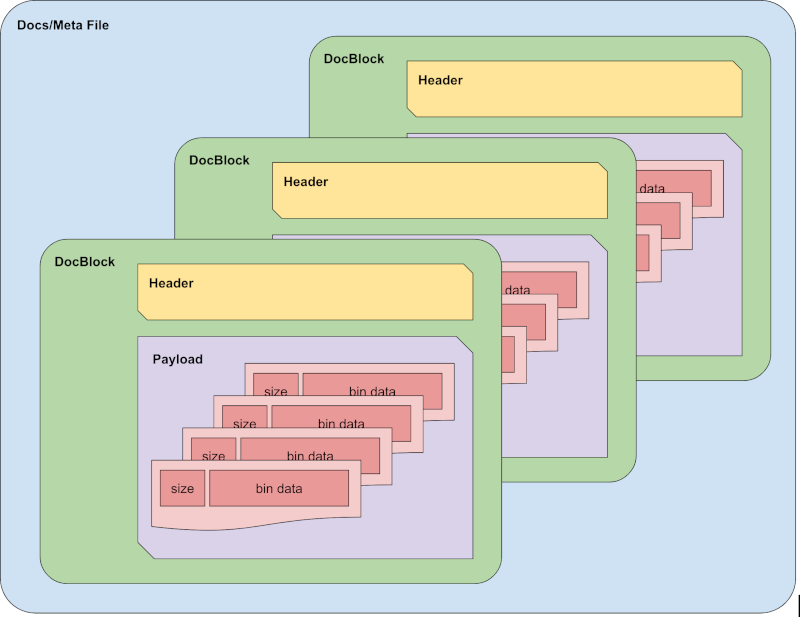

The file format is a sequence of DocBlock following one after another.

<DocBlocks1> <DocBlocks2> <DocBlocks3> ... <DocBlocksN>

In the current implementation, each DocBlock corresponds to the data of the bulk-request, so every bulk-request creates exactly one DocBlock.

DocBlock Format

DocBlock has

a fixed header with block's meta data
arbitrary payload, which may be compressed (lz4 for now).

DocBlock Header

It is 33 byte area with 5 fields:

Field	Size	Type
Codec	1 byte	byte
Length	8 bytes	64uint
RawLength	8 bytes	64uint
Ext1	8 bytes	binary
Ext2	8 bytes	binary

DocBlocks Payload Format

Content of DocBlocks payload of Documents file is generated by a seq-proxy from incoming documents and consists of a sequence of records with two fields:

<SIZE_1> <BINARY_DATA_1> <SIZE_2> <BINARY_DATA_2> <SIZE_3> <BINARY_DATA_3> ... <SIZE_N> <BINARY_DATA_N>

Size - It is unit32
Binary data with size Size - It must be a valid json document

Format of Meta File

Meta file is a part of active fraction. It has *.meta extention and contains metadata of documents.

This file has almost the same format as a Documents file but with 2 differences:

Different BINARY_DATA. Each BINARY_DATA item corresponds to its own document from the Documents file. Format of BINARY_DATA in Meta file is a JSON:

{
    "mid": int,
    "rid": int,
    "s":   int,   // document size
    "t":[         // tokens
        ["field1", "value1"],
        ["field2", "value2"],
        ["field3", "value3"],
        // ...
    ]
}

One more difference: each DocBlock with meta stores in Ext1 field of header size of coresponding DocBlock with documents.
